SPECIFICATIONS

Advantages: waterproof,fireproof,sound insulation,heat insulation etc.

After-sale Service: Online Technical Support,Onsite Installation,Onsite Training,Onsite Inspection,Return and Replacement

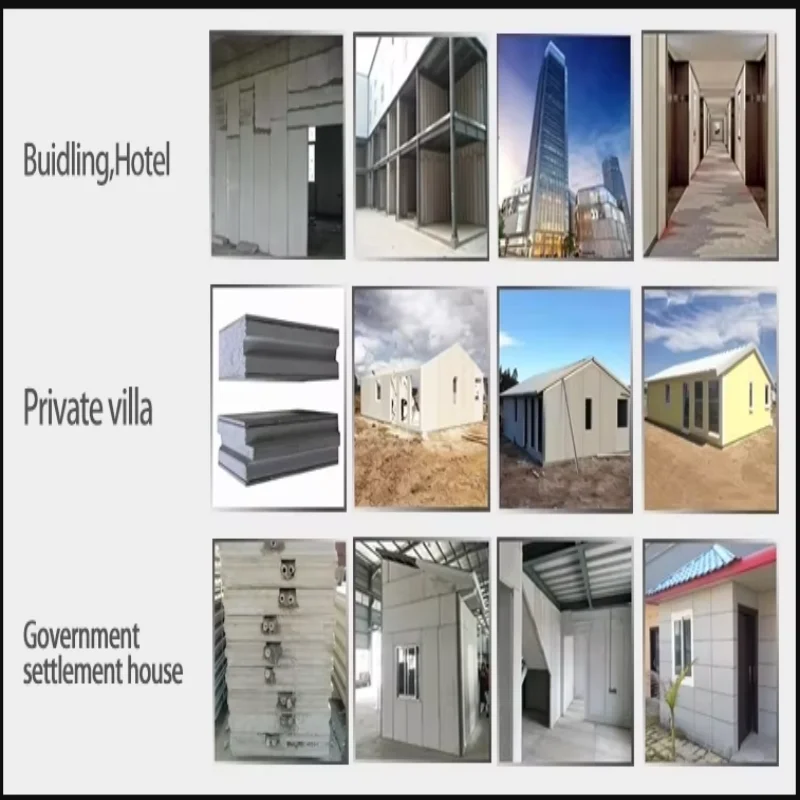

Application: Hotel,Exterior Wall,roof,prefab house,cold room,Villa,Apartment,Supermarket,Leisure Facilities,Sports Venues,Workshop,Park,Farmhouse,Warehouse,Basement,Staircase,Home Bar,Hall

Compressive strength: 210kgf/C㎡

Core: cement, eps, fly ash.etc

Design Style: Industrial

Feature: Water Resistant,Fire Resistant ,easy operation& low cost

Fire rated partition: 4 hours

Length: 610mm

Material: EPS FOAM

Model Number: ZJT-2458

Panel Material: Nonmetal

Place of Origin: Fujian, China

Project Solution Capability: graphic design,Cross Categories Consolidation

Thickness: 60/75/90/100/120/150/180mm

Usage: exterior/interior wall,floor, roof,. prefab buildings. etc.

Warranty: More Than 5 Years

eco-friendly: Eco-Friendly

material: calcium silicate board+EPS+cement and other accessoires

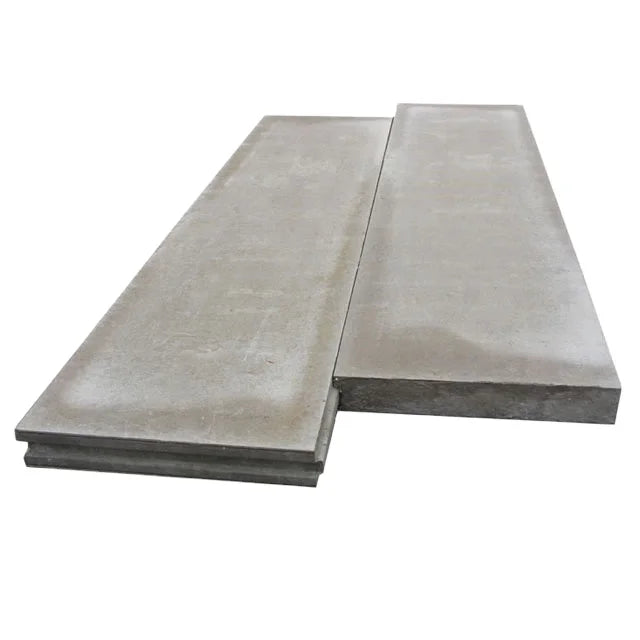

Reusable Lightweight EPS fiber cement sandwich Partition Wall cladding /panel

Product Description

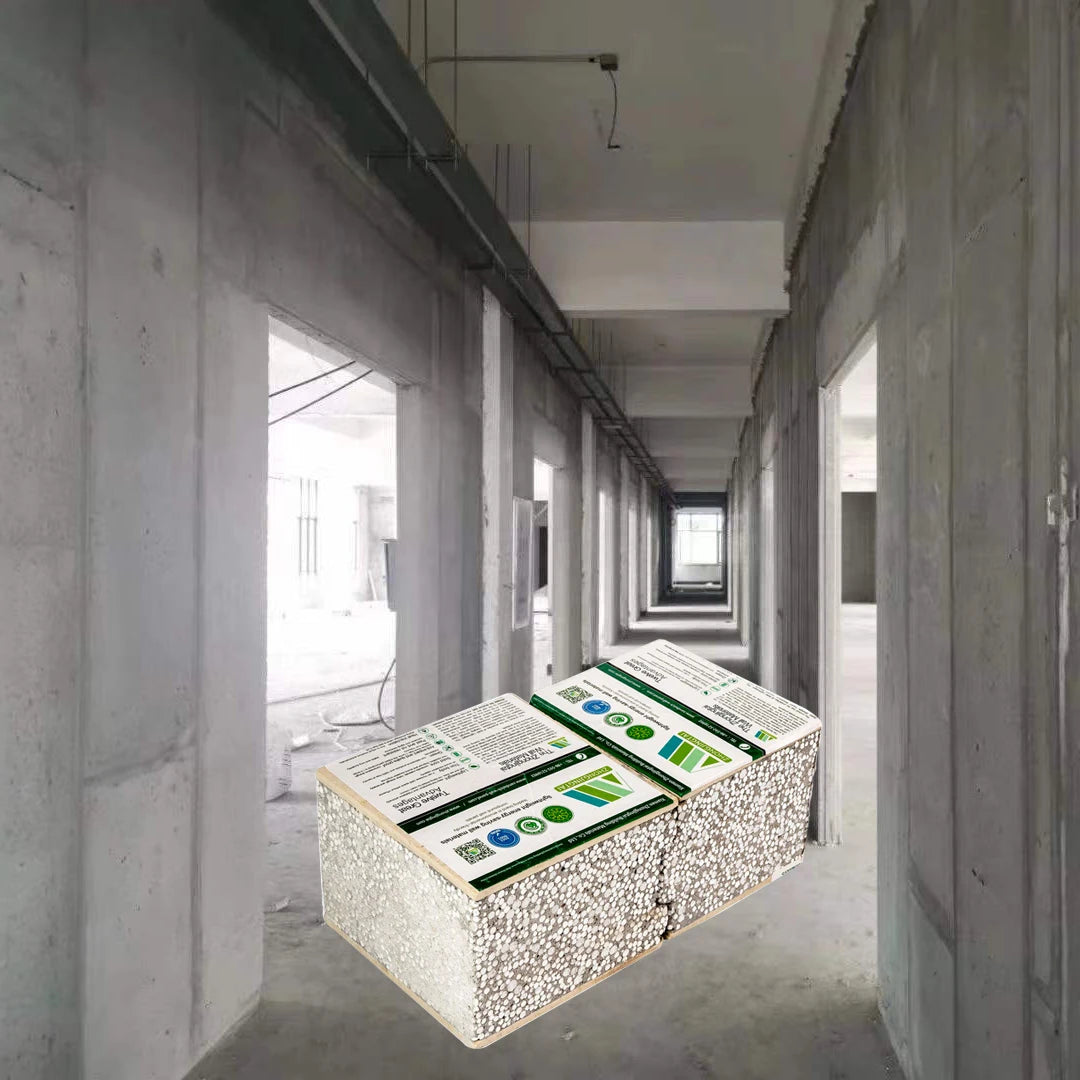

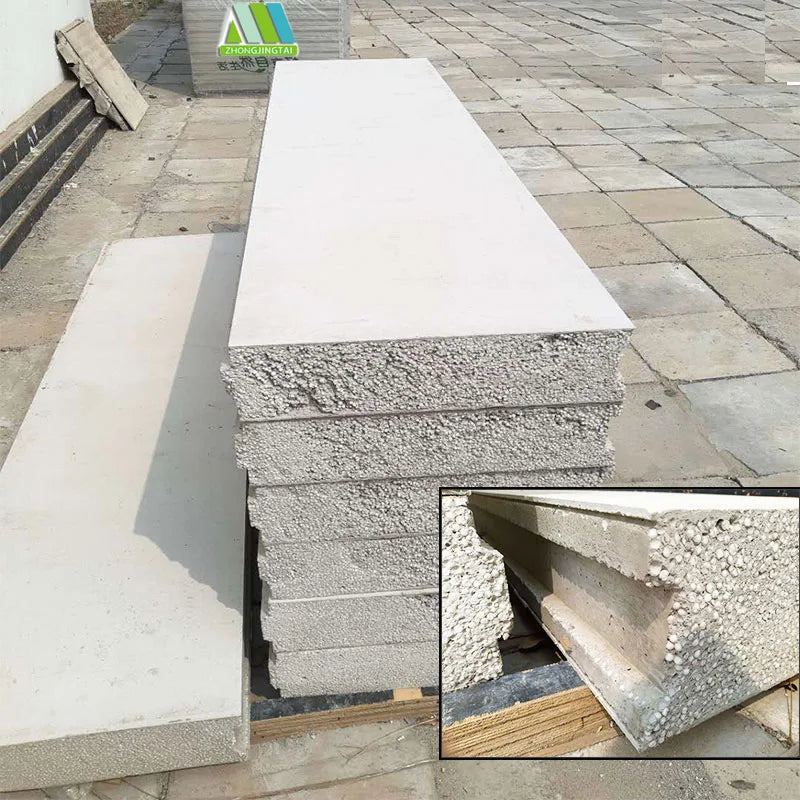

Panel Composition

Panel Specifications

Size	1)  Length: 2270/2440mm 2)  Thickness: 60/75/90/100/120/150mm 3)  Width: 610mm    4)  also could be on customers’ request
Color	Regular is white and gray, also can be customerized

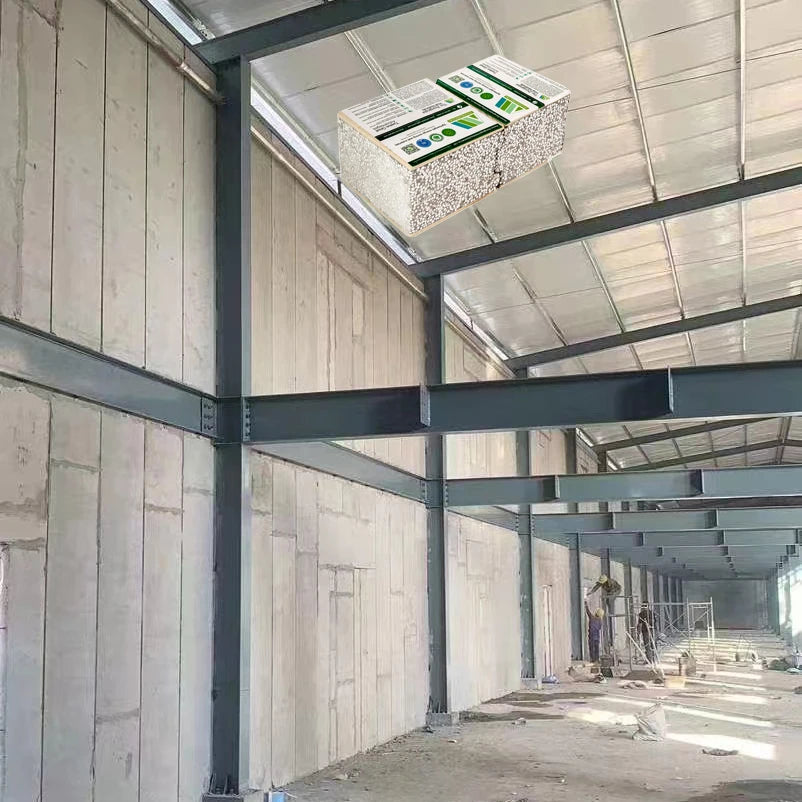

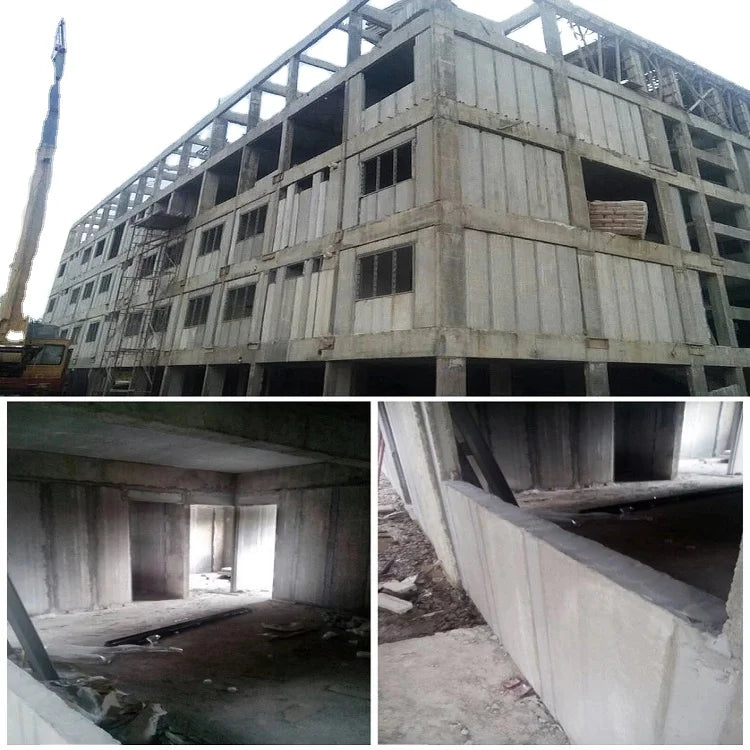

Application	Exterior/Interior Wall,Floor, Roofing, Villa and Prefab buildings etc.
Features	Lightweight, fireproof , waterproof, heat insulation, sound insulation, economic, and environmental etc.
Delivery Time	20 days after receiving deposit
Payment Terms	T/T, L/C

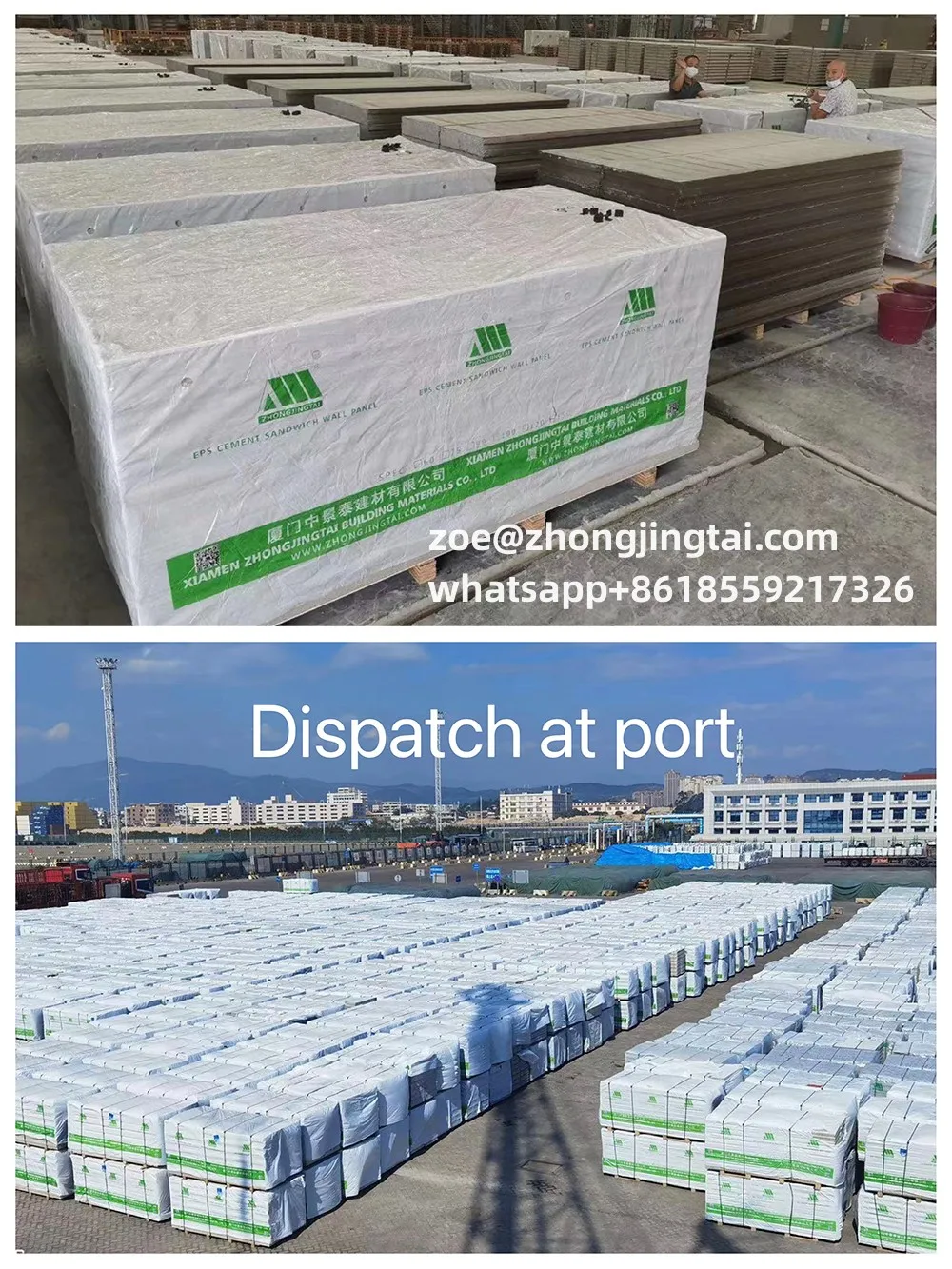

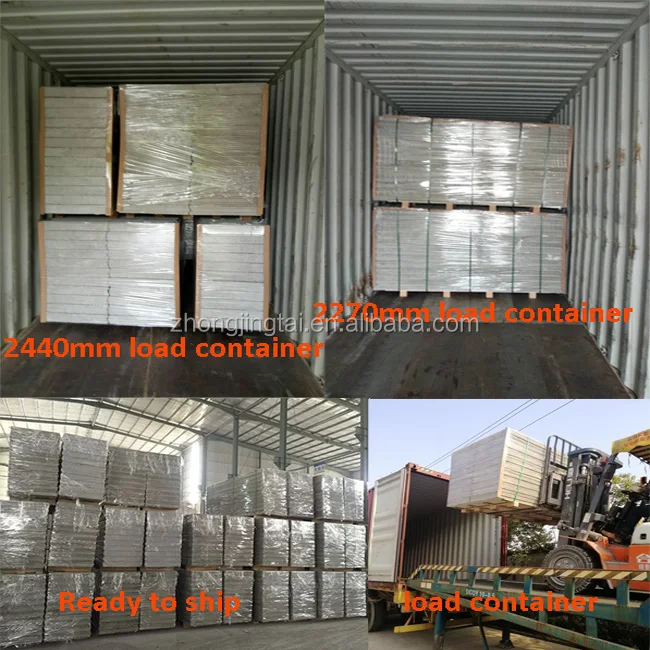

Packing	Put a layer of foam cloth between each 2 panels, cover the whole pallet with foam cloth, use hard paper to protect angles, and roll the whole pallet with thin film. The customers’ demands also could be accepted.



Panel Index



Item		National Standards
		60mm	75mm	90mm	100mm	120mm	125mm	150mm
1	Anti-impact capacity/times	≥5	≥5	≥5	≥5	≥5	≥5	≥5
2	Anti-bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
3	Compressive strength/Mpa	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5
4	Softening coefficient	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8	≥0.8
5	Surface density(kg/m2)	≤70	≤70	≤90	≤90	≤110	≤110	≤110
6	Moisture rate(%)	≤12/10/8
7	Dring shrinkage value(mm/m)	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
8	Hang force(N)	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000	≥1000
9	Sound insulation capacity in the air(dB)	≥30	≥30	≥35	≥35	≥40	≥40	≥40
10	Fire endurance(h)	≥1	≥1	≥1	≥1	≥1	≥1	≥1
11	Heat transfer coefficient(w/m2.k)	-	-	-	-	≤2.0	≤2.0	≤2.0
12	Inner radiation index	≤1	≤1	≤1	≤1	≤1	≤1	≤1
13	Outer radiation index	≤1	≤1	≤1	≤1	≤1	≤1	≤1
14	Frost resistance (shall show no visible cracks and surface without change)	-	-	Shall show no visible cracks and surface without change
15	The combustion properties (A1 or A2)	-	-	A1 or A2





Panel Advantages

a. Energy saving, Green, Environmental friendly
The raw materials do not include harmful substances. Energy-saving effects of the building is greatly improved It is highly recommended by the government.

b. Durable
70+ years building life span.

c. Strong
Hard surface and no damage after impacting. The hanging strength of single spot is 100kg, can nail and affix tile.

d. Fireproof
Panels have a fire rating of 4 hours. Grade A of National standard.

e. Waterproof, Dampproof
No bead on wall panel surface in wet climate.

f. Sound insulation
The sound insulation capacity in the air is 35db-45db (according to National standard: GBJ121-88).

g. Quakeproof
More suitable for seismic & cyclone prone zones.

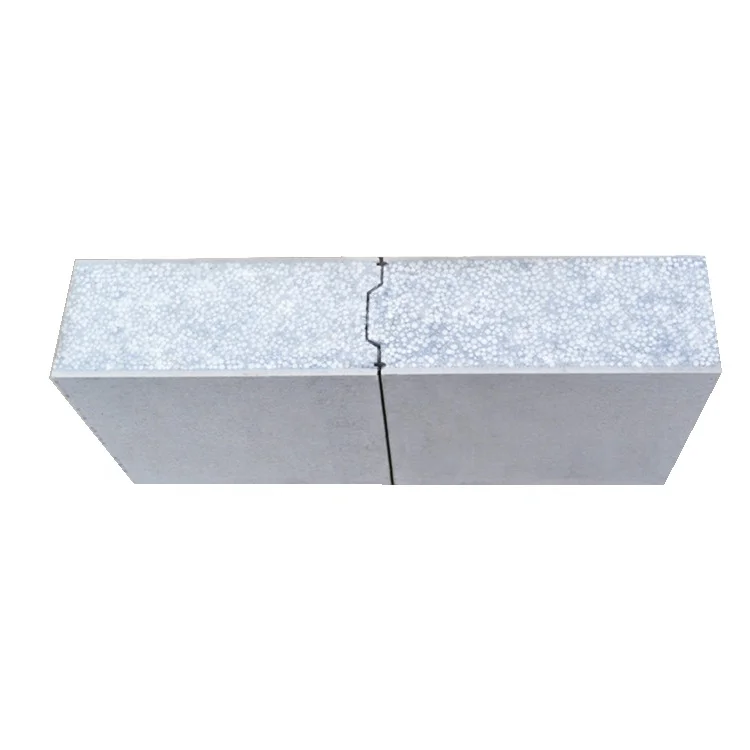

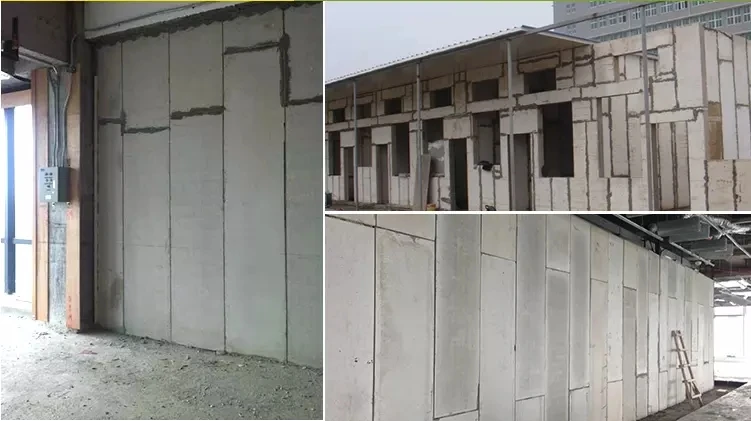

h. Unique tongue and groove
Specially designed tongue and groove arrangement ensures a perfect joint and makes construction faster.

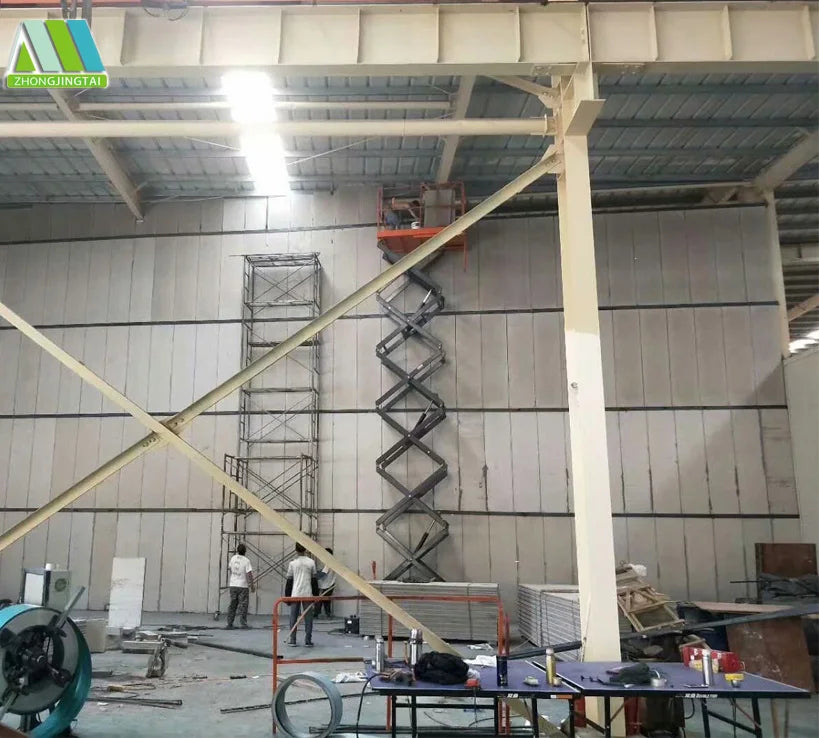

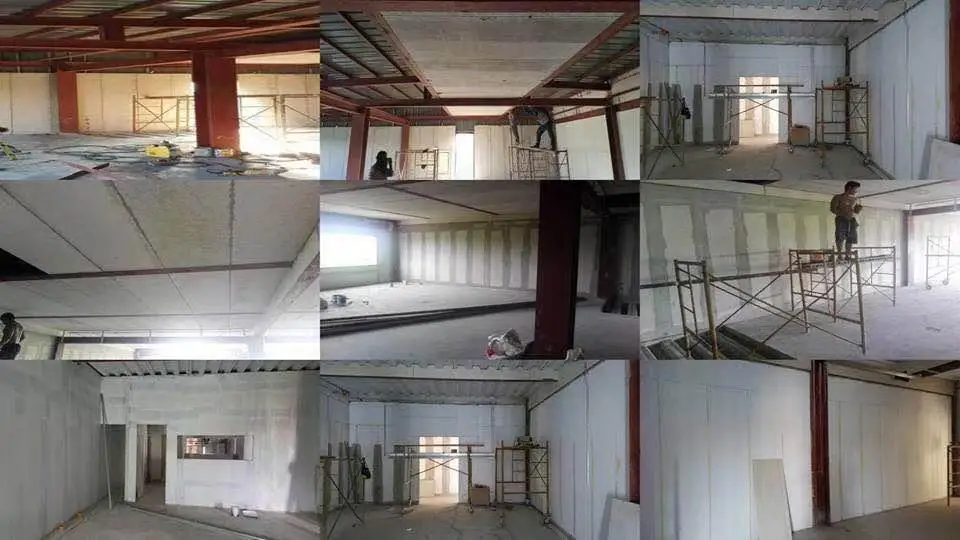

i. Rapid installation
Being light in weight, handling & installation become very easy. One worker can do 20 sqm every day.

j. Dry working
It is very convenient, less building rubbish left after installation and clean up easily.

k. Excellent surface finish
The wallboard surface is level. You can plaster directly for inner decoration. It also can take all decorative treatment.
